24 Channel DVB-S/S2 DTMB DVB-T ISDB Tuner To IP Gateway: 产品型号：HR3624P; 产品产地：广东〈深圳〉; 发布日期：2025-12-17; 浏览次数：次; 咨询电话：18926865298; 关键词：; 分享到： QQ空间新浪微博腾讯微博更多; 下一个产品上一个产品

详细介绍

24 Channel DVB-S/S2 DTMB DVB-T ISDB Tuner To IP Gateway

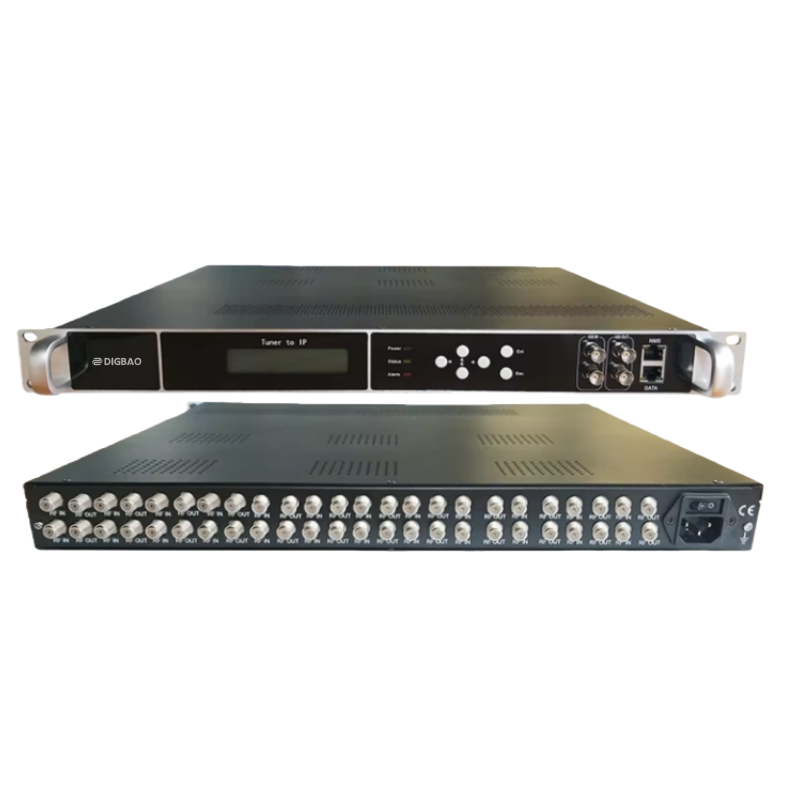

tuner 24 to ip out 111.png

Products Description

Overview

HR3624P 24 Channel Tuner To IP Gateway is a high-density, FTA Professional TS Processor equipped with multichannel independent tuners, which can be either of DVB-S2/S/ATSC/DVB-C/DVB-T/T2/ISDB-T/DTMB) input, demodulating to TS and encapsulating output IP packet by 256*SPTS and 4*MPTS channels simultaneously. It is integrated with tuner demodulation with ASI input & gateway function,
which can demodulate from Max. 24 tuners and directly convert the TS from DVB-ASI, then output the IP package through different IP address and ports.

HR3624P enables an all-IP headend architecture, resulting in a more scalable and lower-cost transition to IP-based services. It distribute any HD and SD of unencryped Tuners Channels to unlimited TVs over the existing TV coax cables with real time perfect quality at any distance. This is an ideal solution for environments where you have a large number of air Channel, and used largely to Medium-Scale IPTV, Hotel, Entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast environments in limited budget severely.

HR3624P can be used in some of the most famous ballparks in the world, this is an ideal solution for environments where you have a large number of displays, such as stadiums, entertainment facilities, or broadcast environment. This DVB to IP Gateway is designed especially for high channel density environments where Rapid deployment, Easy management and compatibility are critical.

Main Features

Tuner input: Up to 24 FTA Tuners input
Tuner Option: DVB-S/S2,DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC, 4 Tuners per module, Up to 6 Modules.
Two separate ASI input for External TS Multiplexing
Two separate ASI output
IP stream output: 4*MPTS and 256*SPTS
Output IP protocol: UDP/RTP
The Value of PCR PID can set same as Video PID
Support LCN (Logical Channel Number)
PID Remapping & Filtering

Low cost headend receiver for IPTV OTT System
Superior Shoulders and Excellent modulation quality MER
Easy-to-Use System Management via Web
PSI/SI editing & inserting
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours
Highly compact , High-Integrate
Support PCR correct and PCR interval adjusting
24*7 hours working stable, broadcasting quality

Specifications
Item	Description
FTA Tuner
Number:4/8/12/16/20/24 FTA Tuners In/Loop Out Tuners:DVB-S/S2/DVB-T/ATSC-T/ISDB-Tb Connecter:F-female type
DVB-S/S2 Tuner
Input Frequency:950-2150Mhz Symbol rate:2~45Mbauds(DVB-S QPSK) 1~45Mbauds(DVB-S2 QPSK) 2~30Mbauds(DVB-S2 8PSK) Signal Strength:-65 ~ -25dBm FEC Demodulation:1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK) Roll Off:0.20; 0.25; 0.35(Only DVB-S) Demodulation Mode:QPSK, 8PSK(Only DVB-S2) LNB Polarity Selection Vol:0, 13V, 18V Selectable LNB Band Selection Tone:0/22Khz Selectable Input Impedance:75 Ω FEC (Code Rate):1/2,2/3,3/4, 5/6,7/8
ATSC-T Tuner input
Frequency range:50–860 MHz Key reference Spec.:ATSC A/53 Input level:-34 to +40 dBmV Constellation:8-VSB Bandwidth:6Mhz
DVB-T/T2 Tuner input
Input Frequency:146-861Mhz Bandwidth:6M, 7M, 8M
DVB-C Tuner input
Type:Female 75Ω Constellations:QAM 16/32/64/128/256 Frequency Range:Range: 51-859Mhz Input Signal Level:-20 to +20dBm (64QAM)
ISDB-T Tuner input
Frequency Range:152~862Mhz RF input level:-70 ~ -25dBm Constellation:DQPSK, QPSK, 16QAM, 64QAM Banwidth:6M, 7M, 8M
DVB--ASI input
Connector:BNC female, 75Ω Signal Level:200-800mVp-p Packet Length:188 bytes Maximum Bit-rate per port:≤100Mbps Number of Input Ports:Dual separate ASI ports
Multiplexing
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually PSI/SI:SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting Max Numbers:4 mux for RF and 1 Mux for MPTS IP out in Modulation 4 Mpts IP out In Tuners gateway
Stream Output
DVB-ASI: 2 Separate ASI, 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) Selectable Mirror of Any MPTS or RF Channel RJ45 Port: 100/1000M GbE Port Simultaneous output with 256* SPTS and 4*MPTS MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable packet size(2-7)x188Bytes Filter Null Packet SPTS limit selectable: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M
Management
LCD/keyboard, Web/NMS management, remote upgrading Power off memory, saving the settings for auto-loading after reboot
The Working Environment
Warranty:5 years Power Supply:AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz Power consumption:55W Operation temperature:0 -50°C Storage temperature:-20-80°C Dimensions:482mmx382mmx44mm or 482x270x25mm by randomly
