20-channel Tuner DVB-C DVB-T DVB-T2 DVB-S DVB-S2 ISDB-T ATSC input Multiplexing Satellite Catv for IPTV or IP Gateway 2ASI

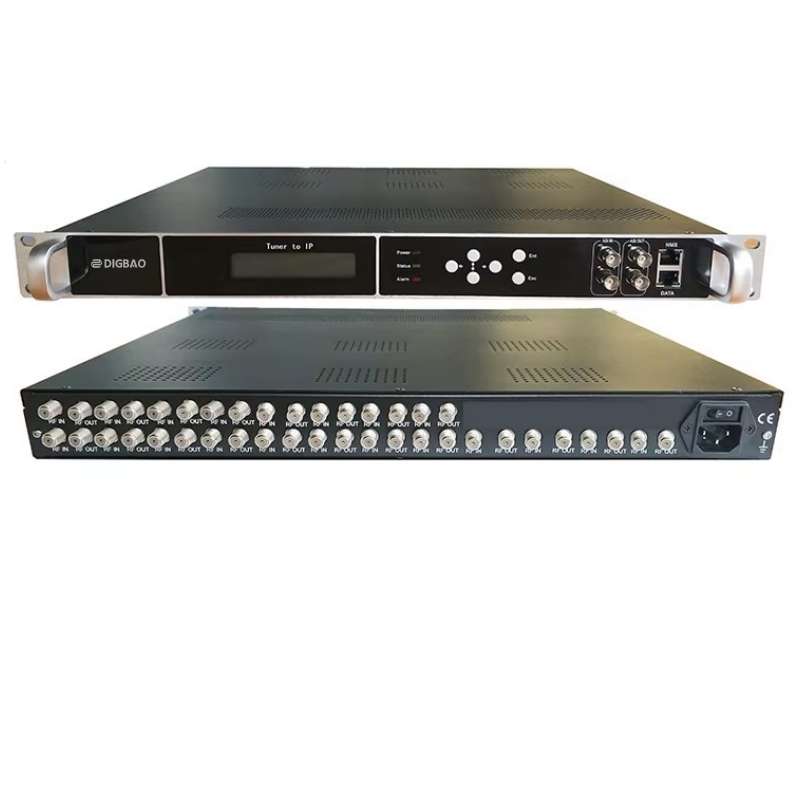

HR3620P is a professional and highly integrated device including tuner demodulation and multiplexing. It supports 20 tuner inputs
(different types of tuner (DVB-S2, DVB-C, DVB-T, ATSC, DTMBT, ISDBT, etc.) inputs are supported), 1000M IP output, 8 MPTS output,
and 512 SPTS output. All in all, the device is highly integrated, cost-effective, and can be widely used in various digital
distribution systems such as cable TV digital headend and digital TV broadcasting.
Main Features ? 20 tuner inputs; (This product also has 4/12/16/24 tuner inputs, please contact me if you need)
Tuner support (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMBT) (please let me know which modulator input you need after payment)
? 1000M IP output via UDP and RTP protocols (MPTS and SPTS)
? 2 ASI inputs
? 2 ASI independent outputs (optional) as copies of 1MPTS
? Supports "Empty PKT Filter" function
? Supports PID remapping/PCR fine tuning
? PID pass-through
? LCD, key functions
? Controlled via network management and can be easily updated over the network
Specifications
Input | 20 tuner; |
and the tuner supports (DVB-S/S2,DVB-C,DVB-T/T2,ATSC,ISDBT) |
2 ASI inputs |
Output | 2 ASI output (optional) |
IP outpu（512 SPTS and 8 MPTS）IP output over UDP and RTP protocol 1000M ethernet port |
Multiplexing | Maximum PID | 180 output pids per channel |
Remapping |
Function | PID remapping ( automatically or manually) |
Accurate PCR adjusting |
System function | Network management(WEB) |
Chinese and English language |
Ethernet software upgrade |
Miscellaneous | Dimension | 482mm×480mm×45mm |
(W×L×H) |
Environment | 0~45℃(work)；-20~80℃(storage) |
Power | AC100~240V，50/60Hz |
requirements |
